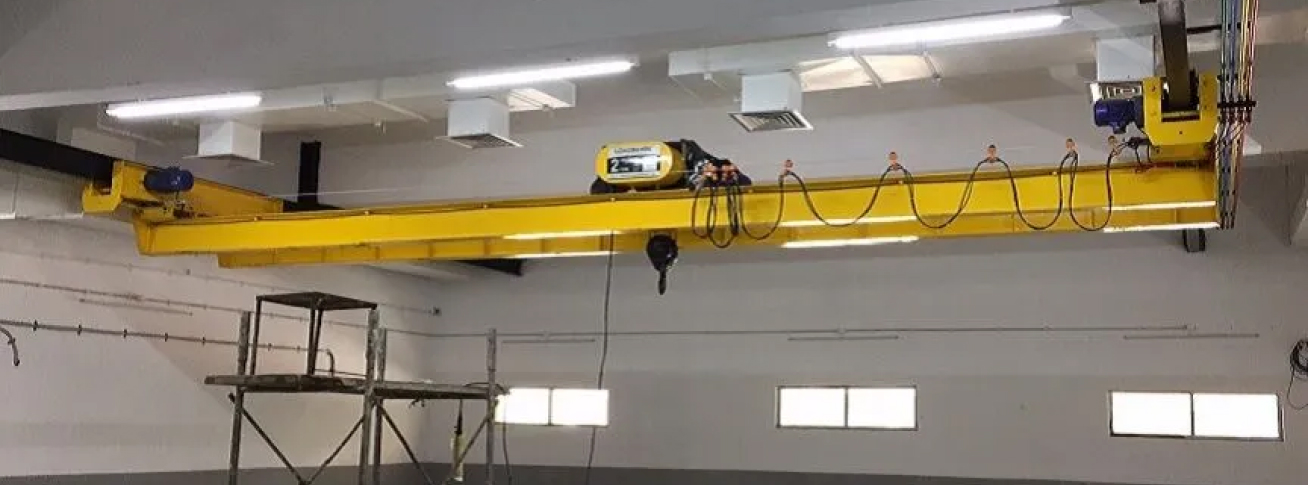

UNDERSLUNG EOT CRANE
S.K. Engineering offer Underslung Cranes with compact design and lightweight making it easy to operate.
Quite similar to EOT Cranes these also come with similar variation in them such as single or dual disc electromagnetic brakes feature that provide the automatic braking in case of sudden power failure occurs at location, various types of limit switches and push button station options are available.
Motors used in the operation depending upon the application can be selected.
These type of cranes are used where there is exists space constraint for EOT Cranes. These cranes comes are of great use for lifting and movement of the material from one location to another.
These cranes have variation in the speed of the drives such as single speed or dual speed. Also we provide the option of independent moving push button for shifting and movement of oversize jobs.
S.K. Engineering are having expertise in manufacturing world class under slung cranes keeping safety with equivalent quality in mind.
Product Details:
| Load Capacity | 1-5 ton |
| Usage/Application | Industrial |
| Power Source | Electric |
| Span | 0-20 feet |
| Hoist Travelling Speed | 0-5 m/min |
| Height | 6 m |
| Country of Origin | Made in India |
From our gallery
Service Feature Highlights
- Smooth and Precise Operation
- Customizable Configurations
- Ease of Installation and Maintenance
- Load Capacity
- Safety Features
- Energy Efficiency
- Efficient Space Utilization
Some FAQ About This Product

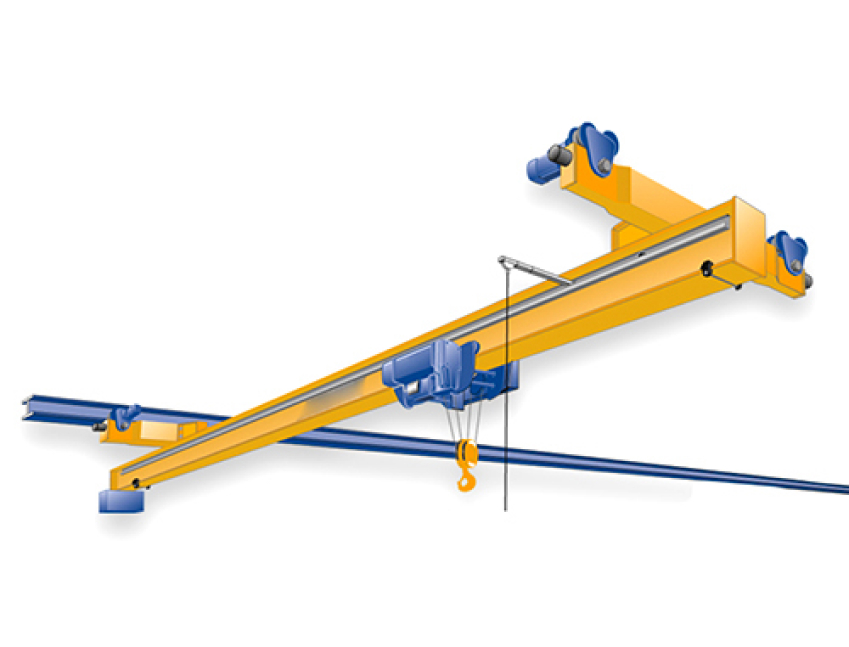

An Underslung Electric Overhead Traveling (EOT) Crane, also known as a suspension crane, operates with the main girder suspended from the bottom flange of a runway beam instead of sitting on top of it. This design makes it ideal for facilities with limited headroom or specific structural constraints

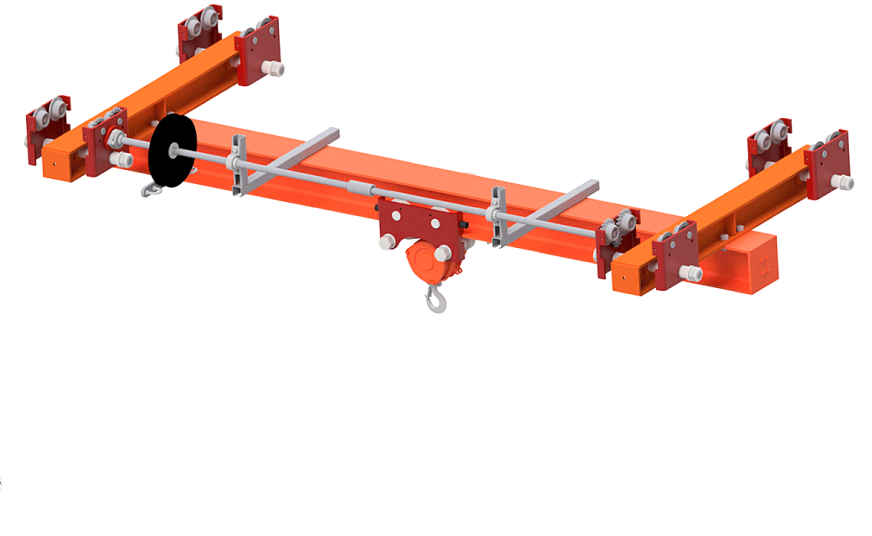

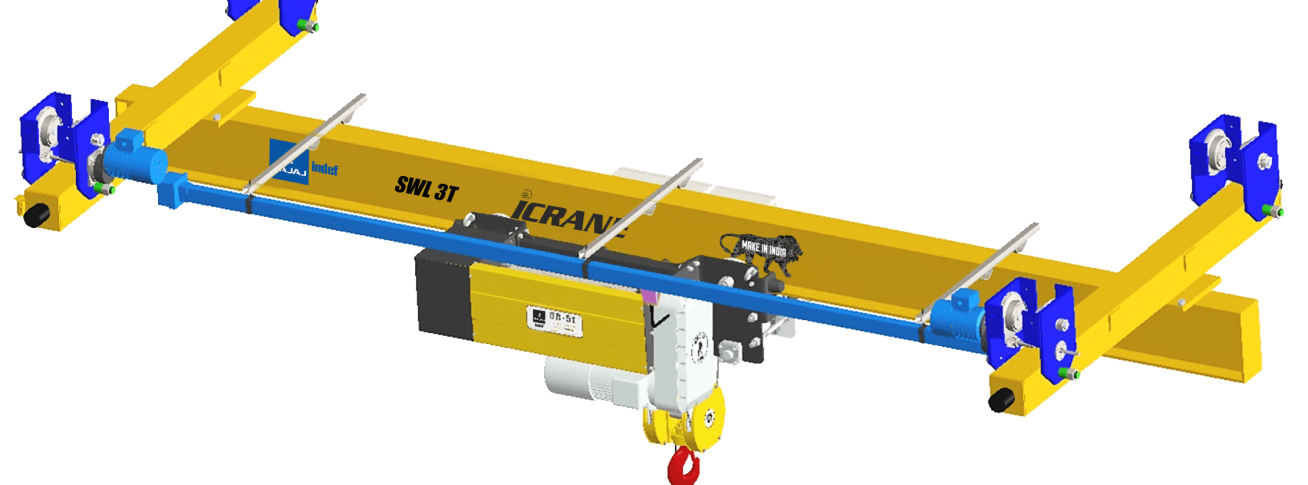

The main components include a suspended main girder, end carriages that move along the bottom flange of the runway beams, a hoist for lifting and lowering loads, a control panel for operation, and an electric drive system to power the crane's movement.
hese cranes are commonly used in small to medium-sized manufacturing facilities, warehouses, workshops, and assembly lines. They are particularly suited for areas where overhead space is restricted and in buildings without support for top-mounted cranes.
Typically, these cranes are designed for lighter loads ranging from 0.5 tons to 10 tons. However, customized designs may support higher capacities.
Yes, these cranes can be customized to fit specific requirements, such as load capacity, span length, hoist type (electric wire rope or chain hoist), and control systems.
